How to Install Halo Headlights on Jeep JK: Step-by-Step Guide

Halo headlights are those signature round LED or CCFL light rings built into a 7-inch housing — the kind that give your Jeep JK an aggressive look and actually make nighttime visibility a lot better. Installing them on a 2007-2018 JK or JKU takes 60–90 minutes and requires nothing fancier than basic hand tools. You’ll need a T30 Torx bit, possibly an H13-to-H4 adapter depending on what connector your new housing uses, and a multimeter to verify everything works before you button it all back up.

Most people run into three predictable snags: connector type mismatch, dashboard flickering (thanks to the JK’s body control module overthinking things), and headlight aim that’s off after the swap. This guide walks you through all three, plus the bench-testing step that saves you from pulling panels back apart later.

Affiliate Disclosure: JeepJK Guide earns a commission on qualifying purchases made through links on this page. This never affects our recommendations.

What You Need: Tools and Parts for a JK Halo Headlight Install

For a 2007-2018 Jeep JK 2-door or JKU 4-door, the parts list is short but specific. The T30 Torx bit is non-negotiable — you genuinely cannot use a Phillips without stripping the screw heads. The rest falls into place once you know your connector type.

Here’s what to have on hand:

• T30 Torx bit — this is the dealbreaker tool; the four bezel screws are recessed and won’t budge with anything else
• Ratchet with 1/4-inch and 3/8-inch drives
• Flathead screwdriver for prying the retaining ring
• H13-to-H4 adapter pigtail — only if your new housing terminates in an H4 plug instead of the factory H13
• Digital multimeter (for verifying polarity before final installation)
• Electrical tape and heat-shrink tubing
• Nitrile gloves (oils from skin transfer to LED lenses and create hot spots over time)
• Zip ties for harness routing

The T30 is the one item people always forget until they’re standing in the garage at 6 PM on a Sunday. Don’t be that person. Buy it ahead of time.

2PCS 7 Inch LED Headlight Connector Pigtail,H13 to H4 Adapter Headlight Socket,Heat Resistant Headli

$7.99

Check Price on Amazon →

The H13-to-H4 adapter pigtail is equally important if your new housing uses an H4 plug. At $7–8, it’s cheap insurance against frying a connector. Keep the gloves nearby too — fingerprint oils on LED and halo ring lenses create hot spots that shorten the lifespan of the lens coating.

All of the above works for 2007-2018 Jeep JK 2-door and JKU 4-door across all trim levels. The headlight bucket and Torx bezel design hasn’t changed in that entire window.

Choosing the Right Halo Headlights for Your Jeep JK

Here’s the thing most people get wrong at the start: you need a full 7-inch round replacement housing, not just a bulb swap. The halo ring is integral to the housing reflector bowl — you can’t retrofit a halo ring onto a stock JK housing. A drop-in LED bulb like the Termitor H13 will make your beam brighter, but you won’t get the halo ring aesthetic at all. Know that distinction before you buy.

The three solid options below are based on what actually works in the field, not marketing claims. I’ve waded through enough JK forum threads to know which installs go smooth and which ones become weekend repair projects.

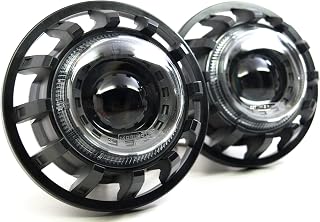

Best Overall: Super7 2.0

For most JK and JKU owners, the Super7 2.0 is the straightforward win. It’s a full LED housing replacement that plugs into the factory H13 harness without an adapter on most installs, arrives with anti-flicker circuitry already built in, and carries DOT approval. Installation is genuinely plug-and-play, which means fewer variables to troubleshoot.

Super7 2.0 LED Headlight Housings for 2007-2018 Jeep Wrangler JK, Full LED Housing Replacement, Flic

Check Amazon for current price

Check Price on Amazon →

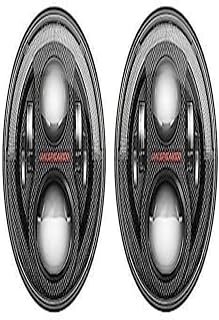

Premium Pick: 8700 Evolution J2

If you’re not worried about the price tag, the Morimoto 8700 Evolution J2 steps up the game with carbon fiber housing and refined beam optics. This is the unit showing up on the serious trail rigs and show builds where appearance and light quality both matter. It’s a legitimate upgrade if you’re building the truck for more than just daily driving.

The 8700 Evolution J2 Carbon Fiber headlights deliver a pro-level aesthetic and optical performance that justifies the premium cost.

Budget Bulb Alternative: Termitor H13 LED Bulbs

If halo rings don’t matter to you and brighter headlights are the whole goal, the Termitor H13/9008 LED Bulbs are the $39.99 shortcut. They claim 50,000 lumens and a 1:1 OEM size fit, and you’ll swap them in 3 minutes per side. Just remember: these are bulbs, not housings. You get no halo ring, but you do get noticeably better brightness.

Termitor Brightest H13/9008 LED Bulbs, 10X Brighter 50,000LM, 85K+ Hours Service Life, 6500K Cool Wh

$39.99

Check Price on Amazon →

For a deeper dive on LED upgrades that pair with halo housings, the full guide to LED lighting upgrades for Jeep JK is worth a read. And if you’re already refreshing the front end, best grill inserts for Jeep JK will complete the look — both have the same universal fitment across the JK generation.

Halo Headlight Options at a Glance: JK Comparison Table

The decision between these three comes down to budget, what your build is actually for, and whether you want a full halo housing or just a brighter bulb swap. Here’s the side-by-side breakdown:

Note: All three options fit the standard 7-inch round headlight aperture on every 2007-2018 Jeep JK 2-door and JKU 4-door — they’re universal across the entire JK generation.

Step-by-Step: How to Install Halo Headlights on a Jeep JK

A halo headlight install on a 2007-2018 JK or JKU takes 60–90 minutes per side for a first-timer, less if you’ve already pulled a JK bezel before. These steps work for both the 2-door JK and the 4-door JKU — the headlight bucket and hardware are identical on both body styles.

I learned the value of bench-testing the hard way. Years ago, a light bar install taught me that melted connectors and frustrating debug sessions happen fast when you wire hot without testing first. Now I always verify function before buttoning anything back up. That single 10-minute step has saved hours of pulling panels apart.

Here’s the full procedure:

1. Disconnect the negative battery terminal. This always comes first. The JK’s BCM gets touchy when you work on the headlight circuit live, and you risk error codes or module damage if you’re not careful.

2. Remove the four T30 Torx screws from the headlight bezel ring. Do not use a Phillips. You will strip the heads, and then you’re stuck. The screws sit recessed and can be stubborn on high-mileage rigs — a light penetrating oil spray the night before makes a real difference.

3. Pull the bezel ring free. Set it face-down on a microfiber cloth — plastic scratches easily, and you don’t want marks on the fresh install.

4. Unplug the factory H13 connector from the back of the stock headlight. Squeeze the locking tab and pull straight back. If your new housing uses an H4 plug, this is where the H13-to-H4 adapter pigtail gets installed.

5. Bench-test the new halo housing before mounting it. This is the step most people skip, and then regret later. Reconnect the battery temporarily, plug in the new housing while it’s still sitting outside the bucket, and verify low beam, high beam, and halo ring all work. Catch a wiring issue now, not after you’ve torqued everything down tight. That LED light bar mistake I mentioned earlier? It started because I skipped this exact step.

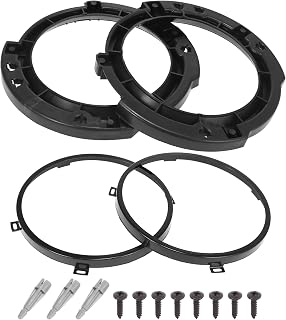

6. Check the retaining bracket ring. Some replacement housings include a JK-specific mounting ring; some don’t. If yours didn’t, grab a separate retaining bracket — stock mounting ears don’t always line up with aftermarket housings.

X AUTOHAUX 7 Inch Round Headlight Mounting Retaining Bracket Ring Set with Headlight Metal Ring for

$28.69

Check Price on Amazon →

7. Seat the new housing into the bucket. Push it straight back until it seats flush against the rubber gasket. Rotate to align the mounting tabs, then thread the retaining bracket ring to secure it. Don’t crank on it — the housing sits against a rubber gasket, and overtorquing will crack the bezel.

8. Route and secure the wiring harness. Use zip ties to keep the connector and any adapter pigtail away from hot engine parts. A harness flopping against the exhaust manifold is a melted connector waiting to happen.

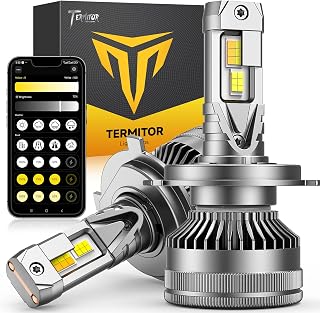

9. If you’re running app-controlled halo bulbs, pair the Bluetooth module now. The Termitor Smart H4 app-controlled unit, for example, needs initial pairing while the housing is still accessible.

Termitor Smart H4 Light Bulb, 0-80000LM 1500% Super Brighter, App-Controlled Dimming & Color Tempera

$99.99

Check Price on Amazon →

10. Reinstall the bezel ring and T30 Torx screws, reconnect the battery, and run a final function check. Test low beam, high beam, halo ring, and turn signals at the bumper. Then move straight to the aiming procedure in the next section — don’t skip aiming. A fresh housing will almost always need adjustment.

How to Wire Halo Headlights on a Jeep JK: Anti-Flicker and Canbus Fix

Flickering halo headlights on a 2007-2018 JK or JKU usually means the body control module is detecting lower resistance from the LED circuit than it expected from the stock halogen bulb. The BCM interprets the low draw as a “bulb out” condition and starts cycling power to compensate — which shows up as flickering or strobing. The fix is a canbus decoder or a relay harness, and it takes about 15 additional minutes to install.

Here’s the good news: Most plug-and-play halo housings, including the Super7 2.0, include built-in canbus circuitry and won’t need an external fix. But if you see flicker after install, adding a decoder will solve it before it becomes annoying.

The BCM Resistance Problem Explained

The JK’s body control module constantly monitors the headlight circuit for resistance levels. LEDs draw significantly less current than halogens do, so the BCM registers an anomaly. On some 2007-2018 trims, this also triggers a “check bulb” dashboard warning. The solution is a canbus decoder that restores the resistance the BCM expects to see without creating excess heat.

Solution 1: H13 Canbus Decoder (Best Value Fix)

A dedicated H13/9008 canbus decoder installs inline between the factory H13 connector and the new housing. No cutting, no splicing. The Xprite H13 decoder is the standard recommendation for most JK installs because it works reliably and costs less than $25.

Xprite H13/9008 LED Canbus Decoder Anti Flicker Harness Error Free Resistor Capacitor for LED Headli

$24.99

Check Price on Amazon →

Solution 2: Relay Harness

A relay harness draws power directly from the battery instead of routing through the BCM, which bypasses the resistance monitoring entirely. The True Mods H4 relay harness is solid if your halo housing uses an H4 connector and you want to future-proof the circuit against BCM load sensitivity.

True Mods H6054 H4 LED Headlight Wiring Harness [Negative Switched Conversion] [Fused] Universal H4

$23.99

Check Price on Amazon →

If your halo housing separates the high-beam circuit through a 9005 connector, the Xprite 9005 decoder handles that leg independently.

Xprite 9005 LED Canbus Decoder Anti Flicker Harness Error Free Resistor Capacitor for LED Headlight

$22.99

Check Price on Amazon →

If a housing’s product listing says “canbus ready,” the decoder is already built in — no external hardware needed. If you don’t see that label, budget $20–25 for a decoder pair.

This all applies to 2007-2018 JK and JKU trims across Sport, Sahara, and Rubicon. If you want to understand how trim level affects electrical and accessory options more broadly, the Rubicon vs Sport vs Sahara trim comparison walks through those differences.

Aiming Your Halo Headlights After Install

New headlight housings rarely sit at the same aim angle as the originals, even if the bucket and hardware are identical. Driving with unaimed headlights either blinds oncoming traffic or leaves the road poorly lit — both are dangerous, and in most states, both can get you a fix-it ticket.

The aiming procedure is straightforward and takes under 10 minutes:

1. Park on flat ground, 25 feet from a wall or garage door. Make a tape mark at the center height of each headlight on the wall.

2. Turn on low beams. The top of each beam’s hotspot should sit at or just below the tape mark — never above it.

3. Locate the vertical and horizontal aim screws on the back of the housing. Most 7-inch JK replacement housings have a Phillips or T20 adjustment screw at the top (vertical) and one on the side (horizontal).

4. Adjust vertical aim first. Only touch the horizontal aim screw if the beam is clearly cocked left or right — vertical aim matters most for oncoming traffic glare.

5. Walk back 25 feet and verify. Both beams should be even and sitting below the tape marks.

A proper aim takes less than 10 minutes and makes a real difference on night drives.

Frequently Asked Questions: JK Halo Headlight Installation

The questions that come up most in JK forums around halo installs are about wiring compatibility, legality, install time, fitment across body styles, and flickering issues. Here are direct answers to the ones people ask most often.

Q: Do halo headlights require any wiring modifications on a Jeep JK?

A: Most plug-and-play halo housings made for 2007-2018 JKs plug directly into the factory H13 harness with zero cutting or splicing. If your housing uses an H4 plug, you’ll need an H13-to-H4 adapter pigtail ($8). Some owners also add a canbus decoder if the BCM triggers flicker, though built-in anti-flicker circuitry on newer housings often makes that unnecessary.

Q: Are halo headlights legal for road use on a Jeep JK?

A: Yes, as long as the housing carries a DOT approval mark. Both the Super7 2.0 and the 8700 Evolution J2 are DOT approved. Non-DOT housings may be restricted to off-road use only — always check the product listing before buying if street legality matters to you.

Q: How long does a JK halo headlight install take?

A: Expect 60–90 minutes per side if it’s your first install. People who’ve swapped a JK bezel before often finish both sides in under an hour total. The bench-testing step adds 10 minutes but is absolutely worth doing — it catches wiring issues before you button everything up.

Q: Will halo headlights fit a JKU 4-door the same as a JK 2-door?

A: Yes, exactly the same. The headlight bucket, bezel hardware, and H13 connector are identical on both the 2-door JK and the 4-door JKU across all 2007-2018 model years. Any 7-inch round halo housing that fits one fits the other without modification. If you’re refreshing the front end anyway, pairing the new headlights with grill inserts completes the look — same universal fitment story.

Q: Why are my new halo headlights flickering on my Jeep JK?

A: Flickering almost always comes down to the JK’s BCM detecting lower resistance than it expected from the LED circuit. Grab an H13 canbus decoder and install it inline — it restores the resistance the BCM is looking for without creating excess heat. If your housing is labeled “canbus ready,” the fix is already built in and you probably have a loose connector instead. For a broader look at electrical upgrades to budget for on a JK build, the full JK build planning guide covers those choices.

Ready to Upgrade Your JK Headlights?

A halo headlight install is genuinely DIY-friendly. No cutting, no fabrication, no special skills. Grab the right housing, have your T30 Torx bit and adapter ready, bench-test before closing everything up, and you’re done. The Super7 2.0 is the right first choice for most builds: plug-and-play, DOT approved, and anti-flicker already built in.
