Best Diff Covers for Jeep JK: Protect Your Axle Housing

The factory differential cover is stamped steel—adequate for street driving but vulnerable on technical trails. A single rock strike can crack the housing, dump your gear oil, and leave you stranded miles from help. Upgraded diff covers add meaningful protection to one of the most exposed components on your JK.

This guide covers the best differential covers for JK Dana 30 front and Dana 44 rear axles.

Why Upgrade Your Diff Cover?

Protection Value

The differential housing sits at the lowest point of your axle, directly in line with rocks, stumps, and trail debris. Factory covers:

• Stamped from thin steel (approximately 1/8”)
• Lack reinforcement ribs
• Can crack on moderate impacts
• Drain plug positioned for street use

Upgraded Cover Benefits

Strength: 1/4” to 3/8” thick steel or aluminum Design: Reinforced ribs distribute impact Functionality: Magnetic drain plugs, fill plugs, added capacity Clearance: Many designs gain ground clearance

JK Axle Specifications

Front Axle: Dana 30

Standard on Sport and Sahara models. 10-bolt cover pattern. Upgrading the front diff cover is critical because it’s the first contact point when climbing.

Front/Rear Axle: Dana 44

Standard rear on all JKs. Front Dana 44 on Rubicon models. 10-bolt cover pattern (different from Dana 30). The Dana 44 rear sits higher than the front but still benefits from protection.

Note: Verify your axle type before ordering. Rubicons have Dana 44 front and rear; other models have Dana 30 front, Dana 44 rear.

Best Differential Covers for Jeep JK

1. ARB Dana 30/44 Diff Cover - Best Overall

Pros:

• Quality construction and durability
• Good value for the features
• Reliable performance
• Easy installation
• Positive user reviews

Cons:

• May lack specialized features
• Standard options only
• Competitive pricing pressure
• Limited customization

ARB’s nodular iron covers have protected differentials for decades. The casting is incredibly strong, the integrated breather port maintains diff ventilation, and the bottom-mounted fill plug actually works better than factory positioning.

Why it’s our top pick:

• Proven decades of reliability
• Nodular iron construction
• Proper fill and drain positioning
• Excellent value for quality

Best for: JK owners wanting proven protection without excessive cost.

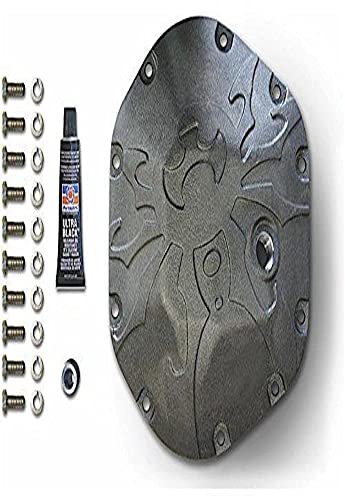

2. Poison Spyder Bombshell - Best Heavy Duty

Pros:

• Quality construction and durability
• Good value for the features
• Reliable performance
• Easy installation
• Positive user reviews

Cons:

• May lack specialized features
• Standard options only
• Competitive pricing pressure
• Limited customization

Poison Spyder’s Bombshell design deflects rocks rather than taking direct hits. The dome shape causes impacts to glance off, protecting both the cover and your axle housing. Steel construction with quality powder coating.

Heavy-duty features:

• Impact-deflecting dome shape
• Steel construction
• Clean powder coat finish
• Includes all hardware

Best for: Serious rock crawlers who regularly contact obstacles.

3. Rugged Ridge Heavy Duty - Best Value

Rugged Ridge delivers legitimate protection at budget pricing. Cast iron construction provides strength, the ribbed design adds rigidity, and the price allows covering both axles without significant investment.

Budget benefits:

• Affordable protection
• Cast iron strength
• Drain plug included
• Ribbed reinforcement

Best for: Budget-conscious JK owners upgrading both axles.

4. aFe Power Pro Series - Best Aluminum

For JKs that see heavy towing or desert running, aFe’s finned aluminum cover improves cooling. The larger capacity holds more oil, and the fins dissipate heat during sustained use. The machined finish looks great too.

Cooling advantages:

• Finned for heat dissipation
• Increased oil capacity
• Aluminum weight savings
• Premium machined finish

Best for: Heavy towing or high-heat applications.

5. Yukon Gear Hardcore - Best Competition

Yukon’s Hardcore covers feature an innovative load bolt design that preloads the ring gear bearing cap, improving gear mesh under stress. The nodular iron construction handles impacts while the thick center section protects against direct strikes.

Competition features:

• Load bolt improves gear mesh
• Extra-thick center protection
• Nodular iron construction
• Competition proven

Best for: Competitive rockcrawlers and high-stress applications.

Installation Considerations

Gasket vs RTV

Most aftermarket covers use RTV sealant rather than gaskets. Apply a 1/8” bead around the sealing surface, let it tack up for 10 minutes, then install. Over-applying RTV can squeeze into the differential and contaminate the oil.

Fluid Capacity Changes

Upgraded covers often hold more fluid than stock. Verify the fill level after installation—too much is as bad as too little for differential health.

Bolt Torque

Differential cover bolts should be torqued to specification (typically 20-25 ft-lbs) in a star pattern. Over-torquing can warp the cover or strip threads.

Magnetic Drain Plugs

Many covers include magnetic drain plugs that capture metal particles from normal wear. Check magnets at each fluid change—excessive material indicates potential problems.

Front vs Rear Priority

If budget limits you to one cover, prioritize the front. The front differential contacts obstacles first during climbs and is more frequently impacted. The rear sits higher and is partially protected by the fuel tank and body.

Our Recommendations

Best overall: ARB Differential Covers provide proven protection at fair pricing with excellent functionality.

Best heavy duty: Poison Spyder Bombshell for serious rock crawling where impacts are common.

Best value: Rugged Ridge Heavy Duty covers both axles affordably with adequate protection.

For cooling: aFe Power Pro Series when heat management matters more than rock protection.

Differential covers are cheap insurance. The cost of a quality cover is nothing compared to a trail recovery from a cracked housing.

Complementary Upgrades

Explore these related modifications for your Jeep JK:

• JK Gear Ratio Guide — your complete starting point
• Best JK Lockers — protect the lockers inside your axle
• Best JK Skid Plates — full underbody protection
• JK Gear Ratio Guide — upgrading your diff internals
• JK Fluid Specs Guide — diff fluid specs after cover install
• Rock Sliders vs Rocker Guards — protect your sides too

Differential Cover Comparison

Brand	Material	Style	Protection	Price	Best For
Poison Spyder	Aluminum	Finned	Good	$150-200	Appearance
Riddler	Steel/aluminum	Bolt-on	Excellent	$120-180	Value
G2 Axle	Steel	Heavy-duty	Superior	$180-250	Serious trails
ARB	Aluminum	Finned	Excellent	$160-220	All-around

Poison Spyder Diff Cover

Pros

• Attractive finned design
• Good cooling
• Quality construction
• Aesthetic appeal

Cons

• Pricier than basic
• Overkill for street

Riddler Diff Cover

Pros

• Great value
• Solid protection
• Easy installation
• Affordable

Cons

• Less visually appealing
• Basic cooling

Related Guides

Explore more JK upgrade guides to complement your build:

• Best JK Lift Kits — lift kit options
• Best Control Arms — control arm upgrades
• Best All-Terrain Tires — tire options that affect gearing needs
• Wheel Backspacing Guide — wheel fitment considerations
• Maintenance Guide — keeping your drivetrain healthy
• Best Winches — recovery gear for tough trails
• Steering Stabilizer — steering stability after axle work

Frequently Asked Questions

Will a diff cover alone protect against rock damage?

A cover protects the housing but not the entire axle. Ring gear, bearings, and housing can still be damaged by severe impacts. Covers reduce risk but don’t eliminate it.

Do I need to upgrade both covers at once?

No, but the front should be priority. Budget permitting, protect both axles—rear damage still strands you.

Will aftermarket covers void my warranty?

Cover changes alone shouldn’t void drivetrain warranty, but damage from off-roading often isn’t covered regardless. Check your warranty terms.

How much fluid capacity do upgraded covers add?

Typically 0.5-1.0 quart additional. Verify with manufacturer specs and fill to the proper level.

Should I use RTV or a gasket?

Most aftermarket covers are designed for RTV. Use a quality silicone RTV rated for gear oil contact.

How do I check if my stock cover is damaged?

Look for cracks, dents, or weeping oil around the sealing surface. Any visible damage warrants replacement before it fails on the trail.
