Best Winches for Jeep JK: Complete Buying Guide
A winch is the single most important recovery tool you can add to your JK Wrangler. When you’re stuck miles from the nearest paved road, a winch can be the difference between a minor inconvenience and an expensive tow—or worse, being stranded overnight.
But with prices ranging from $200 to $1,600+, how do you choose the right winch for your JK? This guide cuts through the marketing hype to help you find the best winch for your budget, build, and trail style.
Quick Comparison: Best JK Winches
| Winch | Rating | Motor | Rope | Price | Best For |
|---|---|---|---|---|---|
| Warn Zeon 10-S | 10,000 lb | Series Wound | Synthetic | $1,400-1,600 | Maximum reliability |
| Warn VR EVO 10-S | 10,000 lb | Series Wound | Synthetic | $900-1,100 | Warn quality, better value |
| Smittybilt X2O Gen2 | 10,000 lb | Series Wound | Synthetic | $550-700 | Best overall value |
| Rough Country PRO | 9,500 lb | Series Wound | Synthetic | $400-500 | Budget series wound |
| X-Bull 13000 | 13,000 lb | Permanent Magnet | Synthetic | $300-400 | Budget with extra capacity |
What to Look for in a JK Winch
Before diving into specific recommendations, understand the key specifications that matter.
Winch Capacity: The 1.5x Rule
Your winch should be rated for at least 1.5 times your JK’s gross vehicle weight (GVW). This accounts for the reduced pulling power when cable is spooled out and provides margin for difficult extractions.
| JK Configuration | Weight | Recommended Capacity |
|---|---|---|
| Stock 2-door | 3,800-4,200 lbs | 8,000-9,500 lb |
| Stock 4-door Unlimited | 4,200-4,600 lbs | 8,000-10,000 lb |
| Modified (2.5” lift, 33s) | 4,500-5,200 lbs | 9,500-10,000 lb |
| Heavy build (armor, 35s+) | 5,500-6,500 lbs | 10,000-12,000 lb |
Important: Winch ratings are measured at the first cable wrap on the drum. Each additional layer reduces pulling power by 10-15%. A “10,000 lb” winch might only pull 6,500 lbs with most of the cable spooled out.
Motor Type: Series Wound vs Permanent Magnet
The motor is the heart of your winch. Understanding the difference helps you make the right choice.
Series Wound Motors:
- Higher sustained power output
- Better heat management under load
- Field-repairable in remote locations
- Draw more current (requires good battery)
- Found on mid-range to premium winches
Permanent Magnet Motors:
- Lower current draw
- Lighter weight
- Less expensive
- Generate more heat, can damage magnets
- Best for occasional use only
Our recommendation: Series wound motors for any winch you’ll depend on. Permanent magnet is acceptable only for “insurance” winches on mild builds with infrequent use.
Synthetic Rope vs Steel Cable
This choice affects safety, weight, maintenance, and cost.
| Factor | Synthetic Rope | Steel Cable |
|---|---|---|
| Safety | Drops when broken (safer) | Whips violently (dangerous) |
| Weight | 8-10 lbs per 90ft | 30+ lbs per 90ft |
| Durability | Susceptible to abrasion, UV | Very durable |
| Maintenance | Requires UV protection, inspection | Oil periodically |
| Handling | Easy on hands | Can cause splinter injuries |
| Water | Floats | Sinks |
| Cost | Higher initial, expensive replacement | Lower initial cost |
Our recommendation: Synthetic rope for most JK owners. The safety advantage alone justifies the premium. Carry a tree saver to protect the rope during pulls.
Best Winches for Jeep JK: Detailed Reviews
1. Warn Zeon 10-S — Best Premium Winch
The Warn Zeon 10-S represents the pinnacle of electric winch technology. If reliability is non-negotiable, this is your winch.
Why It’s #1: Warn has been building winches since 1948, and the Zeon line showcases everything they’ve learned. The series wound motor delivers consistent power even during extended pulls. The convertible control pack allows flexible mounting. And the premium aluminum housing with aerospace-inspired sealing keeps internals protected in the harshest conditions.
Specifications:
- Rated capacity: 10,000 lbs
- Motor: Series wound, 4.6 HP
- Line speed: 5.2 ft/min (no load)
- Rope: 3/8” Spydura synthetic, 100 ft
- Gear ratio: 150:1
- Weight: 75 lbs
- Dimensions: 22.8” x 6.8” x 10.2”
Pros:
- Legendary Warn reliability and build quality
- Fastest line speed in its class
- Excellent heat management
- Convertible control pack for flexible mounting
- IP68 waterproof rating
- Limited lifetime mechanical warranty
- Strong resale value
Cons:
- Premium price point ($1,400-1,600)
- Heavier than budget options
- May be overkill for casual trail users
Best For: Serious wheelers, remote trail exploration, competitive off-roading, and anyone who refuses to compromise on reliability.
2. Warn VR EVO 10-S — Best Value Premium
The VR EVO brings Warn’s legendary quality to a more accessible price point. It shares the same DNA as the Zeon at nearly half the cost.
Why It’s Great: The VR EVO 10-S uses a series wound motor and the same reliable Albright contactor found in premium Warn models. You get IP68 waterproofing, a two-in-one remote (wired and wireless), and Warn’s excellent warranty. It’s essentially 90% of the Zeon at 60% of the price.
Specifications:
- Rated capacity: 10,000 lbs
- Motor: Series wound, 4.0 HP
- Line speed: 5.2 ft/min (no load)
- Rope: 3/8” synthetic, 90 ft
- Gear ratio: 228:1
- Weight: 72.4 lbs
- Dimensions: 20.8” x 6.6” x 7.9”
Pros:
- Warn quality at mid-range pricing
- Series wound motor
- IP68 waterproof rating
- Wireless remote included
- Limited lifetime mechanical, 7-year electrical warranty
- Relocatable control pack
Cons:
- Slightly slower line speed than Zeon
- Not quite the build quality of flagship models
- Heavier gear ratio
Best For: JK owners who want Warn reliability without the flagship price—the sweet spot for most serious trail users.

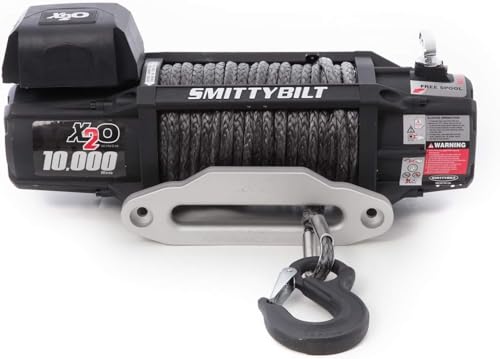

3. Smittybilt X2O Gen2 10K — Best Overall Value
The Smittybilt X2O Gen2 10K offers genuine series wound performance at a budget-friendly price. It’s the winch we recommend most often for JK builds.
Why It’s Our Top Value Pick: Smittybilt dramatically improved the X2O line with the Gen2 revision. The 6.6 HP series wound motor, 218:1 gear ratio, and IP68 waterproofing put it in the same league as winches costing twice as much. Add the lifetime mechanical warranty, and you have the best value proposition in the JK winch market.
Specifications:
- Rated capacity: 10,000 lbs
- Motor: Series wound, 6.6 HP
- Line speed: 26 ft/min (no load)
- Rope: 3/8” synthetic, 98 ft
- Gear ratio: 218:1
- Weight: 94 lbs
- Dimensions: 21.1” x 6.3” x 8.6”
Pros:
- Series wound motor at budget pricing
- Lifetime mechanical warranty
- 5-year electrical warranty
- IP68 waterproof rating
- Wireless remote included
- Relocatable solenoid box
- Strong aftermarket support
Cons:
- Heavier than premium competitors
- Slower line speed than Warn
- Build quality not quite at Warn level
- Can be loud during operation
Best For: The majority of JK owners—those who want reliable performance without overspending. Perfect for weekend wheelers and trail enthusiasts.
4. Rough Country PRO 9500S — Budget Series Wound
Rough Country’s PRO series brings series wound technology to the sub-$500 price point. It’s a solid choice for budget-conscious builders who don’t want to compromise on motor type.
Why It’s Worth Considering: The PRO 9500S proves you don’t need to spend $1,000+ for a series wound winch. With a 265:1 gear ratio and IP67 waterproofing, it handles typical trail recovery scenarios reliably. The 3-year warranty provides peace of mind for occasional users.
Specifications:
- Rated capacity: 9,500 lbs
- Motor: Series wound, 6.0 HP
- Line speed: 28 ft/min (no load)
- Rope: 3/8” synthetic, 85 ft
- Gear ratio: 265:1
- Weight: 78 lbs
- Dimensions: 20.5” x 6.5” x 8.8”
Pros:
- Series wound motor under $500
- Good power-to-price ratio
- IP67 waterproof
- Hawse fairlead included
- Reasonable 3-year warranty
Cons:
- Shorter rope length (85 ft)
- Slower line speed due to higher gear ratio
- Not as refined as Smittybilt or Warn
- IP67 vs IP68 (less water protection)
Best For: Budget builders who want series wound reliability, occasional trail users, JKs with lighter builds.
Rough Country PRO 9500S (9,500 lb)
$400-500
⭐⭐⭐⭐☆ 4.3/5 (Budget Series Wound)

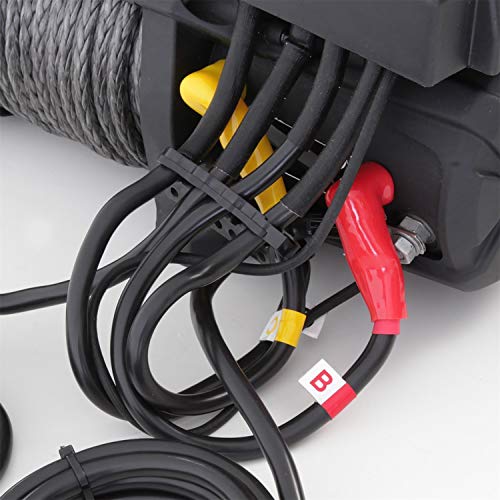

Check Price on Amazon →5. X-Bull 13000 lb — Best Budget Option
For JK owners on a tight budget, the X-Bull 13000 lb winch delivers surprising capability at an entry-level price. The extra capacity provides margin despite the permanent magnet motor.
Why Budget Buyers Should Consider It: The X-Bull addresses the main weakness of budget winches—capacity—by offering 13,000 lbs of pulling power. Even though the permanent magnet motor isn’t ideal for extended use, the extra headroom means you’ll finish most recoveries before heat becomes an issue. At under $400 with synthetic rope included, it’s genuine recovery capability for the cost of a nice set of tires.
Specifications:
- Rated capacity: 13,000 lbs
- Motor: Permanent magnet
- Line speed: 20 ft/min (no load)
- Rope: 3/8” synthetic, 79 ft
- Gear ratio: 218:1
- Weight: 68 lbs
- IP68 waterproof
Pros:
- Highest capacity at this price
- IP68 waterproof rating
- Includes wireless remote
- Lightweight design
- Synthetic rope included
- Tremendous value
Cons:
- Permanent magnet motor (heat sensitivity)
- Shorter rope (79 ft)
- Less proven track record
- Not ideal for frequent use
- Limited warranty support
Best For: Budget-conscious builders, “insurance” winches for occasional use, first-time winch buyers who may upgrade later.
Winch Bumper Requirements
Your JK’s stock bumper cannot support a winch. You’ll need one of these options:
Full Replacement Winch Bumpers ($400-1,500)
Replace the entire front bumper with an integrated winch mount. Benefits include proper frame tie-ins, D-ring recovery points, and often improved approach angle.
Popular options:
- Smittybilt XRC Gen2 ($600-800) — Great value, includes D-rings
- Rough Country ($400-600) — Budget-friendly, good features
- ARB Deluxe ($1,200-1,500) — Premium build, integrated fog lights
- Warn Elite ($900-1,200) — Optimized for Warn winches
Winch Plates/Cradles ($200-400)
Mount behind the factory bumper for a more stock appearance while adding winch capability. Good option if you like your JK’s look but want recovery capability.
For complete bumper recommendations, see our Best JK Front Bumpers Guide.
Electrical Requirements
Winches draw serious current—understanding the electrical demands prevents problems.
Power Draw by Winch Size
| Winch Rating | Peak Draw | Wire Gauge | Battery Minimum |
|---|---|---|---|
| 8,000 lb | 350-400A | 2 AWG | 600 CCA |
| 9,500 lb | 400-450A | 1/0 AWG | 700 CCA |
| 10,000 lb | 450-480A | 1/0 AWG | 750 CCA |
| 12,000 lb | 500A+ | 1/0 AWG | 800 CCA |
Battery Recommendations
The stock JK battery handles occasional winching, but upgrading provides better performance:
- Odyssey PC1500 — 850 CCA, excellent deep cycle
- Optima YellowTop — 750 CCA, dual purpose
- XS Power D3400 — 1,000 CCA, performance value
For heavy winching or remote trails, consider a dual battery setup.
Essential Winch Accessories
A winch alone isn’t enough. These accessories complete your recovery kit:
| Accessory | Purpose | Price |
|---|---|---|
| Tree saver strap (3” x 8’) | Protects trees, extends reach | $25-50 |
| D-ring shackles (pair) | Connect straps and ropes | $30-60 |
| Snatch block | Doubles pulling power | $50-100 |
| Line damper/blanket | Safety during pulls | $20-40 |
| Winch gloves | Protects hands | $15-30 |
| Recovery bag | Organizes all gear | $40-80 |
Installation Considerations
Installing a winch is within the capability of most DIYers. Key considerations:
- Bumper installation — Follow torque specs, use thread locker on frame bolts
- Wiring gauge — Use 1/0 AWG minimum for 9,500 lb+ winches
- Fuse protection — Install ANL fuse (150-200A) within 12” of battery positive
- Ground path — Run dedicated ground cable; don’t rely on frame grounding
- Control box mounting — Keep close to battery, protect from water intrusion
For detailed installation steps, see our JK Winch Installation Guide.
Our Recommendations by Budget
Tight Budget ($300-400): X-Bull 13000 lb — Extra capacity compensates for the permanent magnet motor. Good “insurance” winch.
Best Value ($550-700): Smittybilt X2O Gen2 10K — Series wound motor, lifetime mechanical warranty, wireless remote. The sweet spot for most JK owners.
Premium ($900-1,100): Warn VR EVO 10-S — Warn reliability without flagship pricing. Best choice for serious trail users.
Money No Object ($1,400+): Warn Zeon 10-S — The benchmark. Maximum reliability, fastest line speed, best build quality.
Final Thoughts
For most JK owners, the Smittybilt X2O Gen2 10K offers the best balance of capability, reliability, and value. Its series wound motor and comprehensive warranty make it a genuine workhorse without Warn’s premium price tag.
If you wheel remote trails frequently or simply want the best, the Warn VR EVO 10-S delivers flagship-level performance at a more accessible price point. And for budget builds, the X-Bull 13000 provides real recovery capability for under $400.
Whatever you choose, remember that a winch is just one part of a complete recovery system. Invest in quality accessories, learn proper technique, and never wheel alone without communication gear. Your winch is most valuable when you never need to use it—but when you do, you’ll be glad you invested in quality.
Related Articles
- JK Winch Installation Guide — Step-by-step wiring and mounting
- Best JK Front Bumpers — Winch-compatible bumper options
- JK Dual Battery Setup — Power for demanding winch use
- JK Electrical Upgrades Guide — Complete electrical overview
Affiliate Disclosure: This article contains affiliate links. When you purchase through our links, we may earn a small commission at no additional cost to you. We only recommend products we’ve researched thoroughly and believe offer genuine value for JK owners. Your support helps us continue creating detailed, honest guides for the Jeep community.
Related Guides
Explore more JK upgrade guides to complement your build:
- Best LED Headlights — LED headlight upgrade options
- Best JK Light Bars — auxiliary lighting options
- Best JK Aux Switches — switch panel options for accessories
- Onboard Air Compressor Guide — onboard air system setup
- Armor & Protection Guide — bumper and protection upgrades
- Best JK Phone Mount — phone mounting solutions
Get the Free JK Build Planner
Complete PDF with mod checklists, gear ratios, tire sizing charts, and budget worksheets. Everything you need to plan your JK build.
No spam. Unsubscribe anytime. By subscribing, you agree to our Privacy Policy.
Frequently Asked Questions
What size winch do I need for a Jeep JK?
For most JK Wranglers, a 9,500 to 10,000 lb rated winch is ideal. The rule of thumb is 1.5x your vehicle's gross weight. Stock JKs weigh 4,000-4,800 lbs, while heavily modified JKs with armor can reach 5,500-6,500 lbs. If you run 35-inch or larger tires and wheel in mud, consider a 12,000 lb winch for extra pulling power when the cable is spooled out.
Is Warn worth the extra money over Smittybilt?
Warn winches offer superior build quality, better sealing, faster line speeds, and legendary reliability backed by decades of off-road use. If you wheel remote trails frequently or depend on your winch for self-recovery, Warn's premium is justified. However, Smittybilt's X2O Gen2 with its series wound motor and lifetime mechanical warranty offers 80% of Warn's performance at half the price—making it the better value for occasional trail users.
Should I get synthetic rope or steel cable?
Synthetic rope is recommended for most JK owners. It's significantly lighter (easier to pull out), safer when it breaks (drops instead of whipping), and floats in water. Steel cable is more durable against abrasion and heat but stores dangerous energy under tension. The only situations where steel makes sense: extreme rock crawling where rope abrasion is constant, or budget constraints since steel cable winches cost less.
Can I install a winch on my stock JK bumper?
No, the factory JK bumper cannot support winch loads. You need either an aftermarket winch bumper with proper frame tie-ins ($400-1,500) or a winch cradle/plate that mounts to the frame behind the bumper ($200-400). Never attempt to mount a winch to the stock bumper—it will fail during recovery, potentially causing injury.
What battery upgrades do I need for a winch?
The stock JK battery (550-700 CCA) handles occasional winching if you keep the engine running at 1,500+ RPM. For frequent winching or remote trails, upgrade to an AGM battery with 750+ CCA like the Odyssey PC1500 or Optima YellowTop. If you wheel alone in remote areas, consider a dual battery setup for insurance against being stranded with a dead battery.
How long can I run a winch before it overheats?
Most winches can pull continuously for 1-2 minutes before needing to cool down. Follow the 30/60 rule: winch for 30 seconds, rest for 60 seconds. Always run your engine while winching to maximize alternator output. If the motor housing becomes too hot to touch, stop and let it cool for 5+ minutes before continuing.
Jeep JK Guide
We're JK owners who've been building, breaking, and fixing Wranglers for years. Everything here is tested on our own rigs - no sponsored fluff, just honest recommendations.
Learn more about us →Get the JK Build Planner
Free PDF with complete build checklists, gear ratios, and tire fitment guides.
By subscribing, you agree to our Privacy Policy.
Related Articles
Best LED Light Bar For Jeep JK: Complete 2024 Guide
Find the best LED light bar for your Jeep JK with expert picks for 52-inch, 42-inch, and 30-inch bars plus complete kits with brackets and wiring harness.
Best Head Units & Radios for Jeep JK: CarPlay Upgrades
Discover the best aftermarket head units and radios for Jeep JK models with Apple CarPlay and Android Auto integration. Complete comparison and installation guide.
Best GPS Navigation for Jeep JK: Off-Road & Trail GPS Options
Find the best GPS navigation for your Jeep JK. Compare Garmin Overlander, onX Offroad, and smartphone options for trail navigation.
